Photoelectric hybrid connector

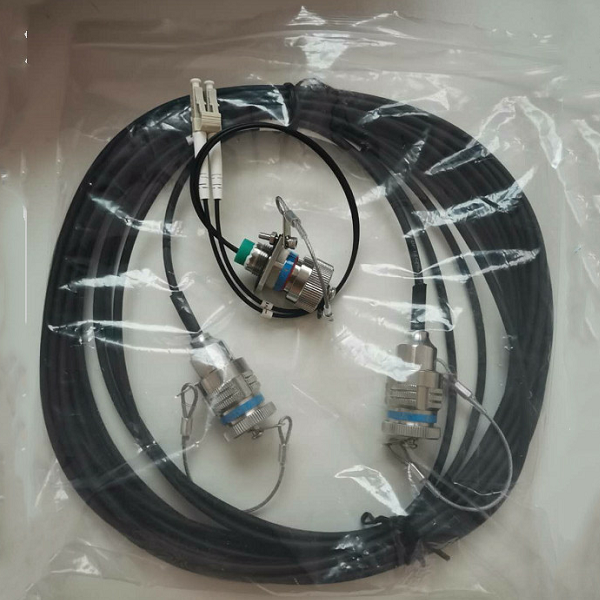

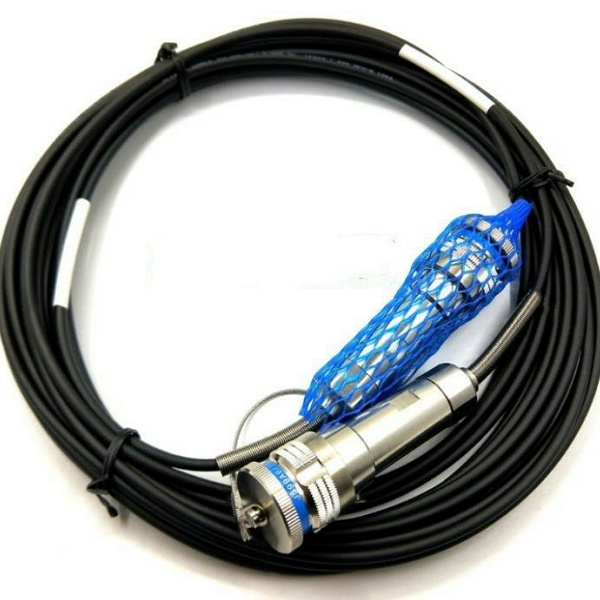

Optical fiber plug cable connector

Applicable to aviation, electronics, ships and other systems, for multi-channel optical communication;
Different materials and coatings can be selected for the outer shell to meet different environmental requirements;
Five-key positioning, with blind insertion and anti-wrong insertion functions;
Three-threaded quick connection with anti-loosening mechanism;
Adopt ceramic pin and bushing to realize precise butt joint of contact parts;
There are a variety of tail variations to choose from;
There is an adapter socket (optional air seal) to get rid of the restriction of optical cable.
Alibaba Link1 Link2
    Insertion loss: ≤ 0.6 db.
    Working temperature:-55℃ ~+85℃.
    Vibration: 10 Hz ~ 2000 Hz，power spectral density 0.4G2/Hz.
    Impact: 2940 m/s2, duration 3ms, velocity change rate 2.96m/S.
    Mechanical life: 500 times.
    Tensile force: ≥68N(2mm contact jumper).
